2 PC Ball Valve
Inquiry
Isotactic PP Ball Valve
Isotactic PP Natural Ball Valve
PPH Ball Valve with Gearbox

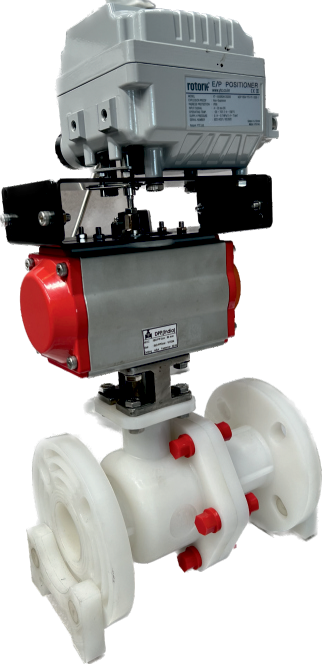

PVDF Ball Valve Actuated
- Valves are of 2 pc. Design, fitted with six set of SS Bolt Nut Washer which contributes to their sturdy construction..
- Body and Stem seals are offered in various elastomers like EPDM, Neoprene, Hyplon, Butyl, Viton and also in PTFE for chemical resistance against most chemicals.
- Valves have full bore: thereby, allowing full 100% flow..
- Body & Stem Seals are offered in various elastomers like.
- EPDM, Viton, Butyl, Hypalon etc for chemical resistance.
- Steel inserts in Stem (spindle) & Handle provides more strength, sturdiness, longer life & better performance.
- Stem Design is Blowout proof.
- Carbon black additives resist ultraviolet rays & prevents degradation of polypropylene in sunlight exposure.
- Universal Drilling PCD provides comfort to install valves everywhere.
- Size Range: 25mm to 100mm NB.
- Drilling: As per all internationally accepted Standards such as ASA, BS, DIN etc..
- Hydrostatic Test: At 10 kg/sq.cm.g for Body & Seat.
- (As per API 598).
| No. | Part | Qty. | Material |
|---|---|---|---|
| 1 | Body | 01 | Iso. PP/PPH/PVDF/A.PP/A.HD |
| 2 | END | 01 | Iso. PP/PPH/PVDF/A.PP/A.HD |
| 3 | O ’ RING BODY SEAL | 01 | EPDM/VITON |
| 4 | BALL | 01 | Iso. PP/PPH/PVDF/A.PP/A.HD |
| 5 | SEAT | 02 | PTFE |
| 6 | STEM | 01 | MS/SS316/SS304 insert moulded with Iso.PP/PPH/PVDF/A.PP/A.HD |
| 7 | WASHER | 01 | PTFE |
| 8 | BOLT, NUT & WASHER | 06 | MS/SS316/SS304 |
| 9 | O ’ RING STEM SEAL | 02 | EPDM/VITON |
| 10 | WASHER | 01 | MS/SS316/SS304 |
| 11 | BOLT | 01- | MS/SS316/SS304 |
| 12 | CAP | 01 | ISOTACTIC PP |
| 13 | CAP | 12- | ISOTACTIC PP |
| 14 | HANDLE | 01 | ISOTACTIC PP WITH MS INSERT |
